PRODUCTS

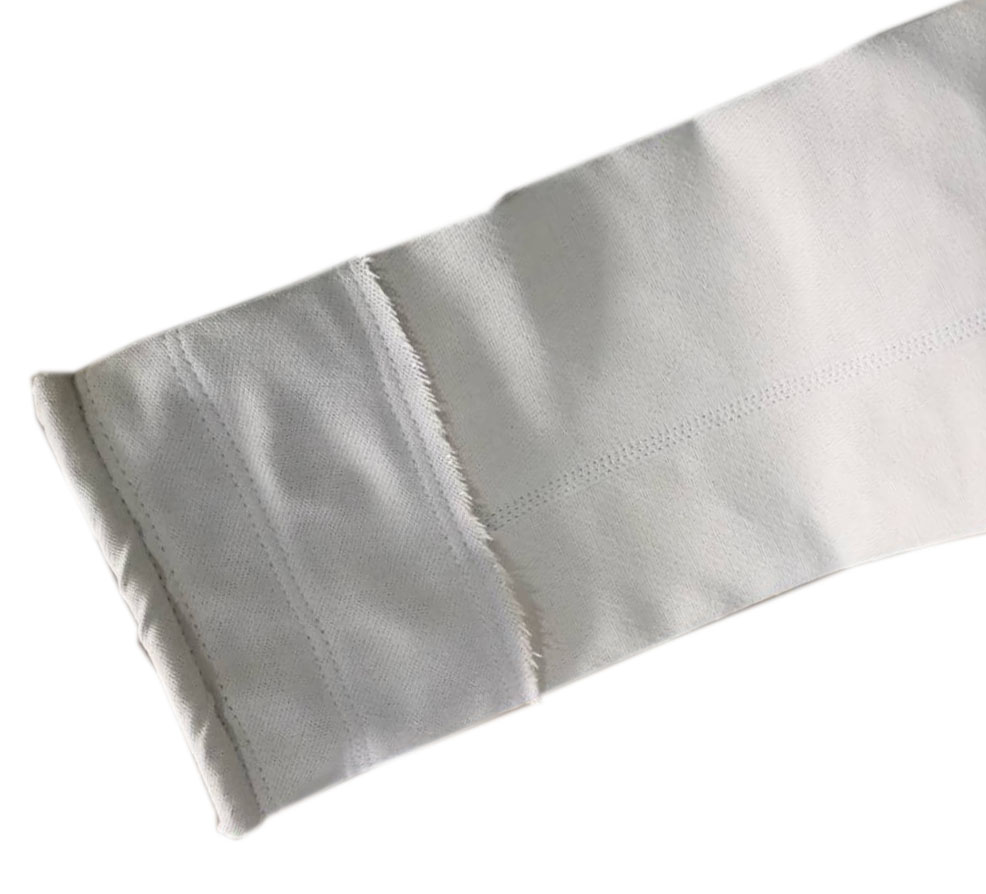

Woven Fiberglass Filter Bags
Woven fiberglass filter bag with PTFE membrane(Teflon membrane), gram weight 750gsm as most regular weight. We also can customize from 750g to 900g gram weight of filter glass fabric.
Features and Benefits
- High Durability membrane technology provides an excellent combination of filtration efficiency and dust cake release
- PTFE fiberglass fibers provide good all-around chemical and temperature resistance
- Heavyweight fabric design and construction provides excellent dimensional stability and strength
Applications
- Chemicals processing: dryers and micronizers in TiO2 and pigment industries
- Minerals processing: cement kiln/mill, alkali bypass, lime kiln, and lightweight aggregate dust collectors
- Metals processing: iron cupola
- Power generation and incineration: soil remediation
Technical Specifications
|
Specification |
||
|
|
I |
II |
|
|
Fiberglass With PTFE Membrane |
Fiberglass With PTFE Membrane |
Area weight, g/m2 |
|
790 |
750 |
Density, g/cm3 |
|
0,91 |
0,88 |
Thickness, 2.0 kPa, mm |
|
0,94 |
0,92 |
Tensile strength, N |
warp |
4520 |
4600 |
weft |
4440 |
5860 |
|
Elongation at break, % |
warp |
8 |
8 |
weft |
3 |
5 |
|
Air permeability, mm/s |
198 Pa |
50,7 |
58,6 |
|
49 Pa |
11,9 |
13,1 |
Heat resistance, °С |
|
250 |
250 |
warp |
- |
- |
|
weft |
- |
- |
|
Continuous operating temperature, °С |
|
260 |
260 |
Peak short term temperature, °С |
|
280 |
280 |
FOR INDUSTRIAL USE ONLY
Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
