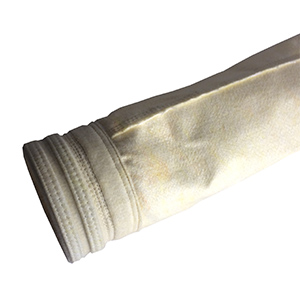

Fiberglass Filter Bags



Power Plant Coal Dust Filtration Fiber glass Filter Bag

Non Woven Boiler Cement Plant 775GSM Fiberglass Cloth Filter Bags



Fiberglass Filter BagsSpecification:
1. Material : Fiberglass staple fiber
2. Scrim: with fiberglass staple yarn
3. Width:≤2.2m
4. Thickness:2.3-2.7mm
5. Weight:800-900g/m2 ±10%
6. Temperature (ºC): Continue: 240, Instant: 280



Fiberglass Filter Bags Applications :

Fiberglass non woven filter media bags applications ranges in asphalt plant, incinerator, metallurgy, cement carbon black, liquid boiler, coal fire boiler dust filtration.



Fiberglass Filter Bags Advantages :

1. Good Temperature-Resistance. Max. Temp. 280 degree C.
2. High Filtration Efficiency: up to 99.9%
3. Excellent performance in Anti corrosion.
4.Fiberglass filters is the first choice for incinerator smoke , smoke in industries like metallurgy, cement , carbon black, liquid boiler, coal fire boiler.
5. Longer working time: more than 36 months.
6. Variety of finish treatments : Coating PTFE Membrane ,PTFE Impregnation
7. Good heat resistance, flame retardant, anti-corrosion effect.
8 . Used in dust filtration of high temperature, high acidity, high alkalinity, fine high
temperature, collection of valuable metal powder , high adhesive property etc.
9. . Customized by order.
With rich practical experience and working R&D team, we can design and develop kinds of filter media to satisfy the complex and diverse working conditions.
10. Advanced production lines: Complete testing and testing methods are the assurance to the products' quality.



Fiberglass Filter Bags Physical Properties :

Weight(gsm)850
Thickness(mm)2.5
Width(mm)≤2.2m
Finish treatmentSingeing, Calendering, Heat setting
Air permeability(L/m2.s)200-350
Tensile strength(N/5cm)warp≥900
weft≥1050
Tensile elongation(%)warp≤35
weft≤60
Heat shrinkage(%)warp≤1.5
weft≤1.0
Temperature(ºC)Continue240
Instant280


Fiberglass Filter Bags Chemical Properties:

Anti-acidExcellent
Anti-alkaliExcellent
Anti-abrasionExcellent
hydrolysis stabilityGood
